Data Storage Solutions – STORTRENDS 3202j

Flash Fueled Storage

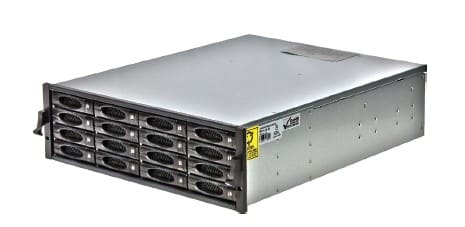

The StorTrends 3202j is a 16-bay dual controller SAN expansion unit that can house up to 128TB in a single shelf. The 3202j can be configured with all HDDs, all SSDs, or hybrid to meet users’ exact capacity and performance requirements.

The StorTrends 3202j can be added to the StorTrends 3710i, 3500i, or 3400i array via fully redundant 6Gb SAS cables to deliver desired amounts of additional storage and speed. The 3202j operates with the head unit’s auto-tiering capabilities to intelligently promote and demote data between tiers for optimal performance of users’ most critical and frequently accessed data.

  • 24 Bays

  • Dual Controller

  • Up to 92TB

Features & Specifications

Hardware
StorTrends 3202j Dual Controller JBOD
Form Factor 3U, 16 Bay
Weight 24 kg (52.8 lbs.) without drives; approx. 32 kg (70.4 lbs.) with 16 drives
Dimensions 13.1 x 48.2 x 59.0 cm (5.2 x 19.0 x 23.2 in)
Redundant Power Supply Yes
Hot-swappable Power Supply Yes
No. of Drive Bays 16 (3.5 in)
Drive Interface
NL-SAS HDDs, SAS SSDs
Hot Swappable Drives Yes
Maximum Capacity 128TB raw per shelf (up to 1PB per stack)
External Connectivity External SAS (4x SAS Ports)
