Filter Lists

Overview:

Filtering is used for both input and output of the routing information. Once a filter is defined, it can be applied in any direction.

Functionality:

Route Filters can be divided into 2 categories

1) Access Lists
2) Prefix Lists

Prefix List entries determine parts of networks which can be allowed or denied. A prefix is a portion of an IP Address, starting from the far left bit of the far left octet. By specifying exactly how many bits of an address belong to a prefix, you can then use prefixes to aggregate addresses and perform some function on them, such as redistribution (filter routing updates). Prefix lists are used for route filters.

Detailed information on each parameter is beyond the scope of the document as is part of understanding Filtering. Information on different configuration parameters can be found http://docs.frrouting.org/en/stable-7.3/filter.html

Configuration Parameters

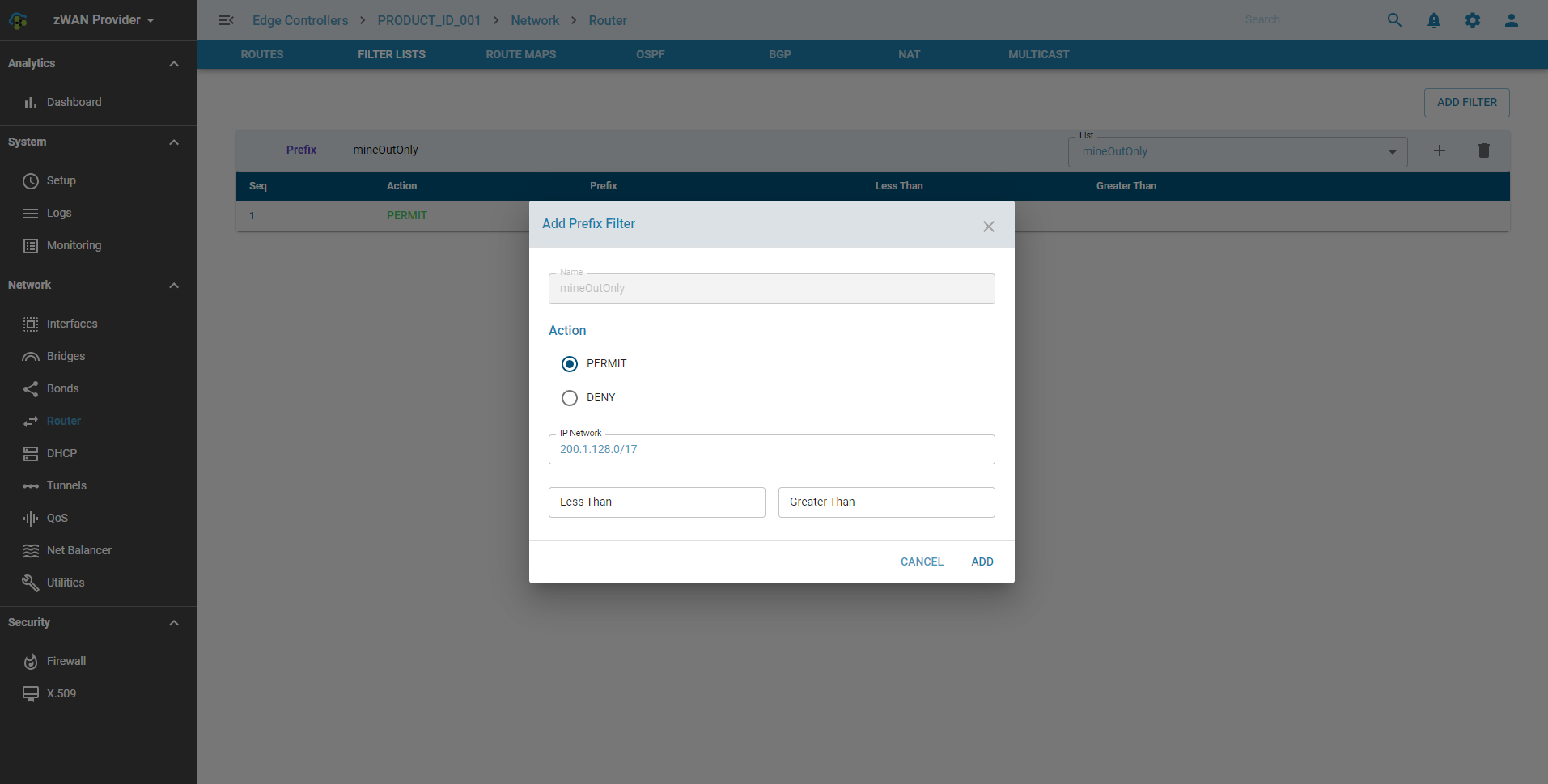

Add a Prefix List

Use Cases:

Access and Prefix Lists are mainly used in context with BGP and OSPF.

Overview:

Filtering is used for both input and output of the routing information. Once a filter is defined, it can be applied in any direction.

Functionality:

Route Filters can be divided into 2 categories

1) Access Lists
2) Prefix Lists

Access List entries determine if networks are allowed or denied. Each Access List entry includes an action element (permit or deny) and a filter element. The filter element is based on criteria such as: source address, destination address, protocol, and protocol-specific parameters. Access lists are used for packet filters.

Detailed information on each parameter is beyond the scope of the document as is part of understanding Filtering. Information on different configuration parameters can be found http://docs.frrouting.org/en/stable-7.3/filter.html

Configuration Parameters

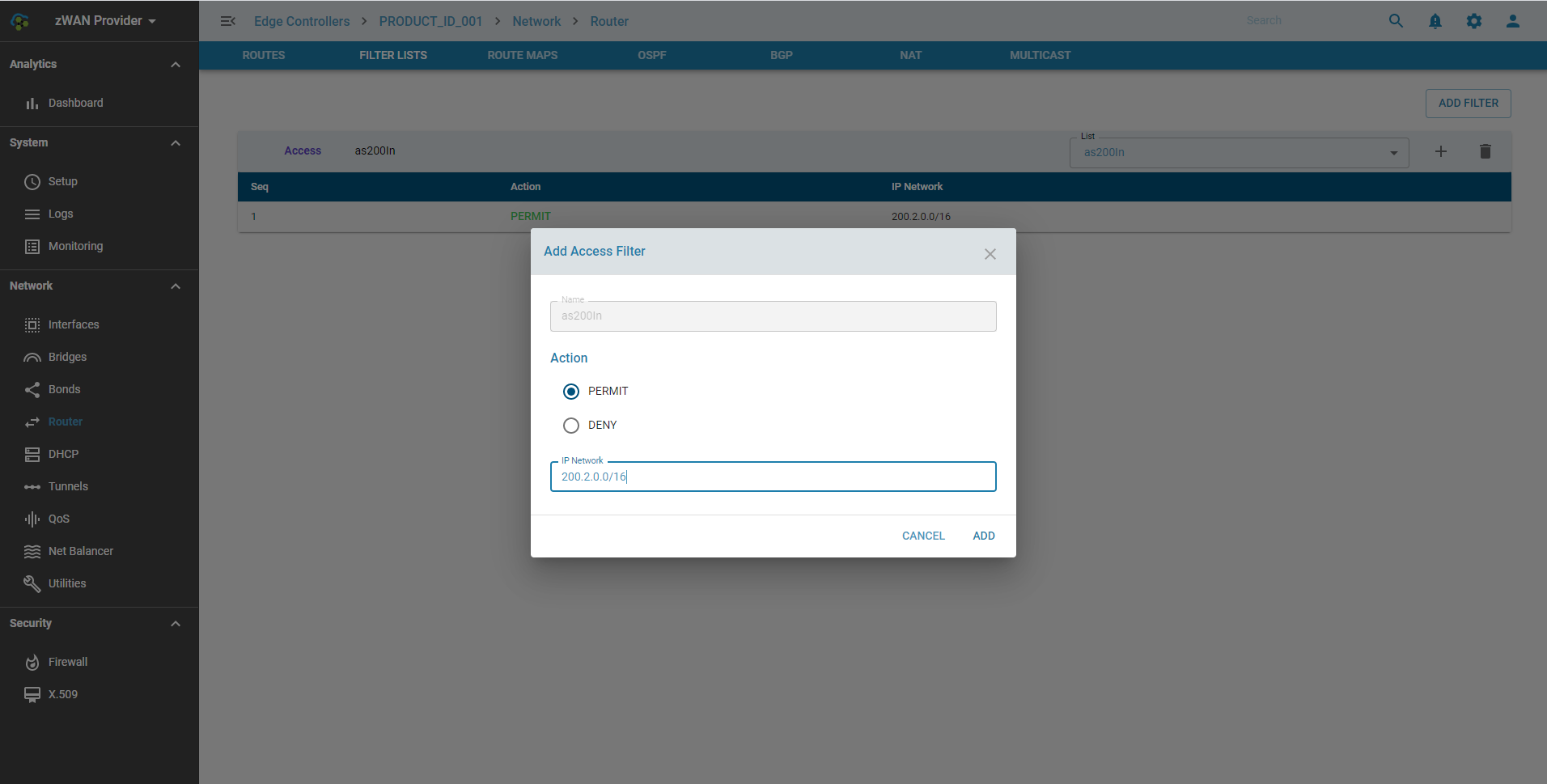

Add an Access list

Use Cases:

Access and Prefix Lists are mainly used in context with BGP and OSPF.
