Configuration Parameters:

• Can be configured only in a Server role. Please select the local IP address and local port;
• The port must be unique and should not be conflict with other VPN tunnel configuration in the same edge controller.
• Peer mutual authentication will be based on either X.509 Certificate or LDAP or OAUTH or OAUTH_MFA
• Only UDP protocol is supported in this mode
• When X509 authentication is choosen, peer connection can be filtered based on Certificate Common Name (Remote-CN)

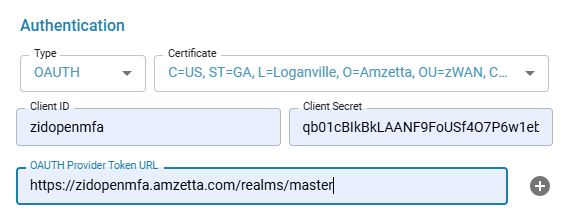

• OAUTH configuration is added at a Director level for each user. The Client ID and Client Secret needs to be provided. Multiple endpoint url tokens can be provided.

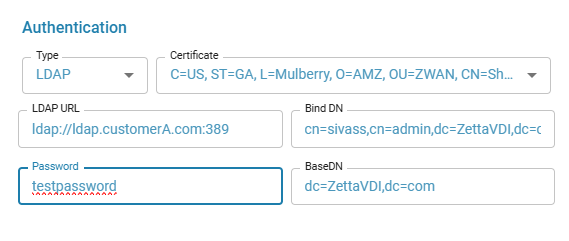

• When using LDAP, provide the LDAP URL and appropriate values in the fields specified

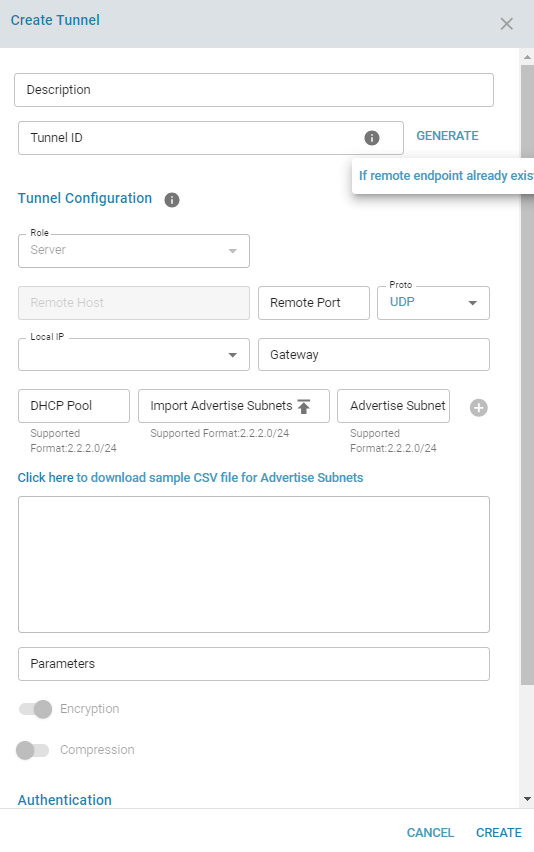

Create Tunnel

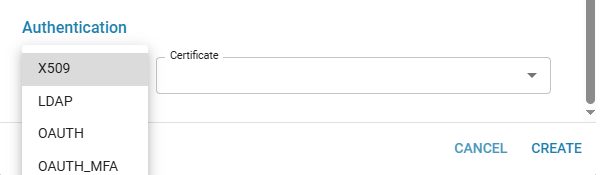

Authentication Types

• LDAP

• OAUTH

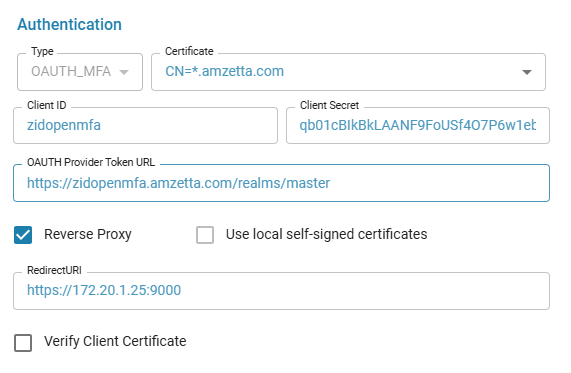

• OAUTH_MFA

The Remote Endpoint URL or OAUTH Provider Token URL is the address of your Identity Provider or the Reverse Proxy that handles the secure (TLS) connection. The Redirect URI is the URL of that same Reverse Proxy, or alternatively, the EC default OpenVPN Auth port (http://:9000). If you're using local self-signed certificates for testing, you don't need to specify a Redirect URI, as it will automatically default to https://:9000. When neither reverse proxy nor local self signed certificates are used, it will default to HTTP connection which is not recommended, other than for testing purposes. When a reverse proxy is in use, it terminates the TLS connection for both URLs before forwarding traffic to the Identity Provider and the EC Authentication port. It is highly recommended to use a reverse proxy in production environments.

The CA certificate used by the reverse proxy should be imported on the EC to validate the issuer of the certificate.

Using self-signed certificates can generate security warnings on the Client's browser pages.

A sample NGINX Reverse Proxy configuration for a locally hosted Identity Provider and the OpenVPN OAUTH server hosted on the EC

Locally Hosted Identity Provider

server {
  listen 443 ssl;
  listen [::]:443 ssl;

  ssl_certificate <Customer Host certificate>;
  ssl_certificate_key <Customer Host private key>;

  ssl_session_cache shared:le_nginx_SSL:10m;
  ssl_session_timeout 1440m;
  ssl_session_tickets off;

  ssl_protocols TLSv1.2 TLSv1.3;
  ssl_prefer_server_ciphers off;

  ssl_ciphers "ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384";

  error_page 497 https://$host:$server_port$request_uri;

  location / {
    proxy_pass http://<IP address of locallty hosted IDP>:9080/;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";
    proxy_set_header Host $http_host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-Host $host;
    proxy_set_header X-Forwarded-Server $host;
    proxy_set_header X-Forwarded-Port $server_port;
    proxy_set_header X-Forwarded-Proto $scheme;

    proxy_buffer_size          128k;
    proxy_buffers              4 256k;
    proxy_busy_buffers_size    256k;
  }
}

OpenVPN OAUTH Server

server {
  listen <TLS termination port to listed on the Reverse proxy server> ssl;
  listen [::]:<TLS termination port to listed on the Reverse proxy server> ssl;

  ssl_certificate <Customer Host certificate>;
  ssl_certificate_key <Customer Host private key>;

  ssl_session_cache shared:le_nginx_SSL:10m;
  ssl_session_timeout 1440m;
  ssl_session_tickets off;

  ssl_protocols TLSv1.2 TLSv1.3;
  ssl_prefer_server_ciphers off;

  ssl_ciphers "ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384";

  location / {
    proxy_pass http://<IP of the Edge controller>:9000/;

    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_set_header X-Forwarded-Host $host; # Crucial for some apps
    proxy_set_header X-Forwarded-Port $server_port; # Crucial for some apps

    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection "upgrade";

    proxy_buffer_size          128k;
    proxy_buffers              4 256k;
    proxy_busy_buffers_size    256k;
  }
}

Export Client Profile .OVPN File

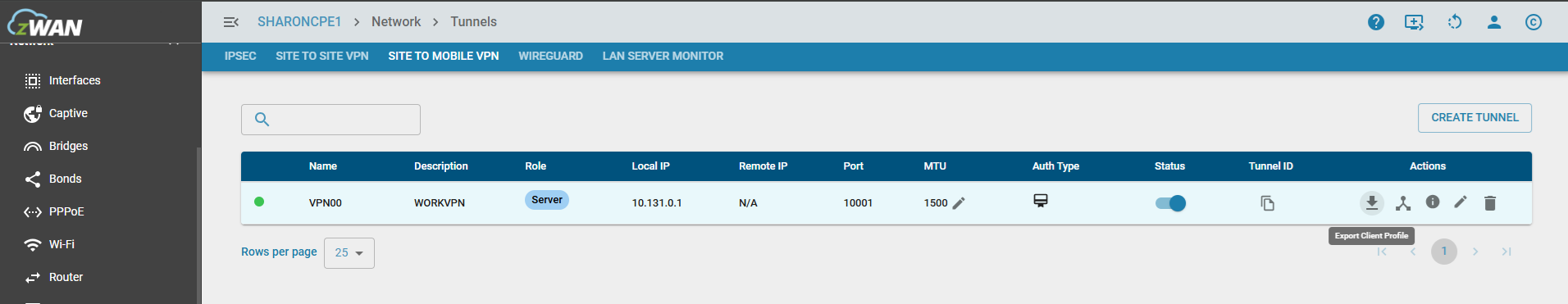

The .ovpn file can then be imported into the OpenVPN Connect. Click on "Export Client Profile" in the options

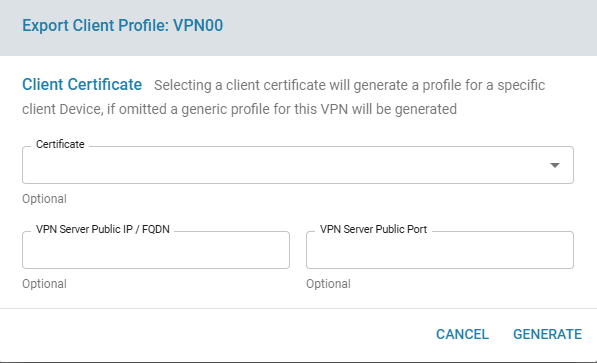

Selecting a certificate selection is not mandatory and is used for additional protection if need be.

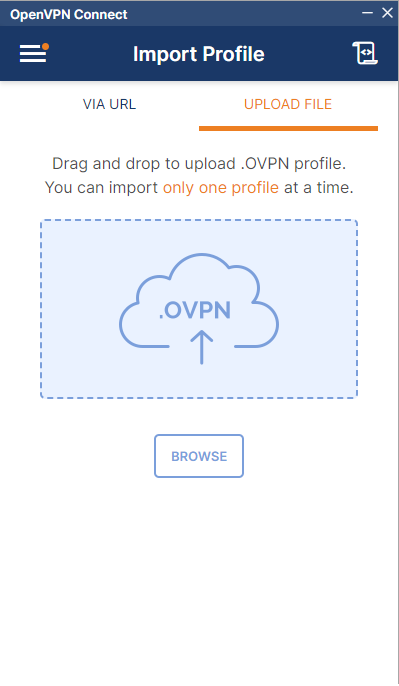

The downloaded .ovpn file can be uploaded to the OpenVPN Connect Application

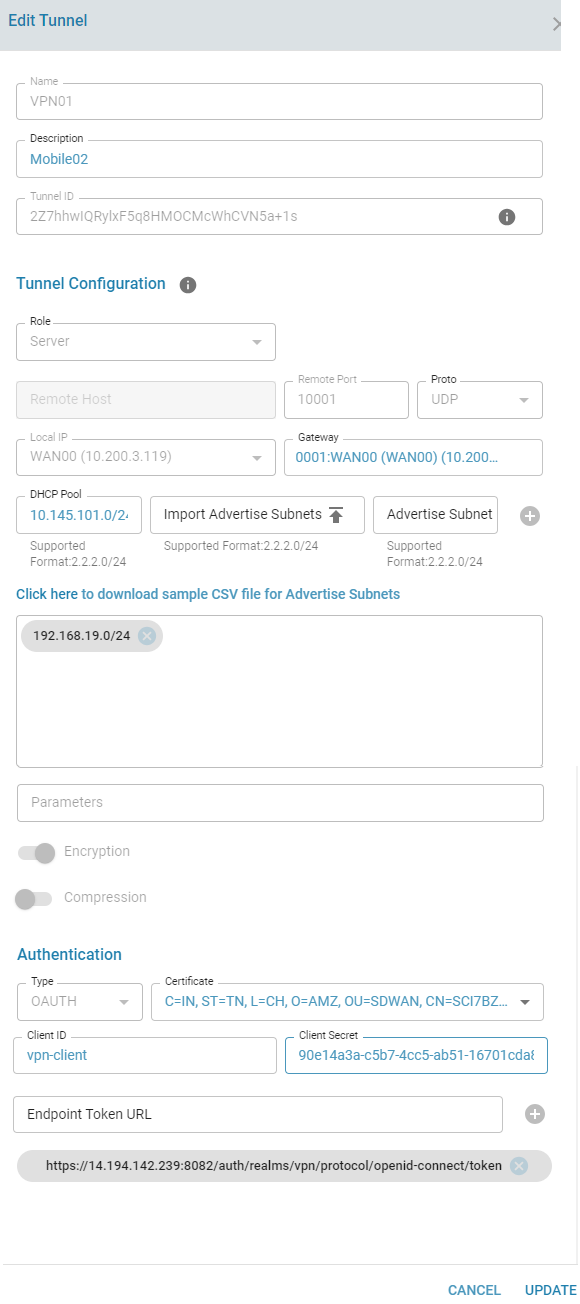

Edit Tunnel

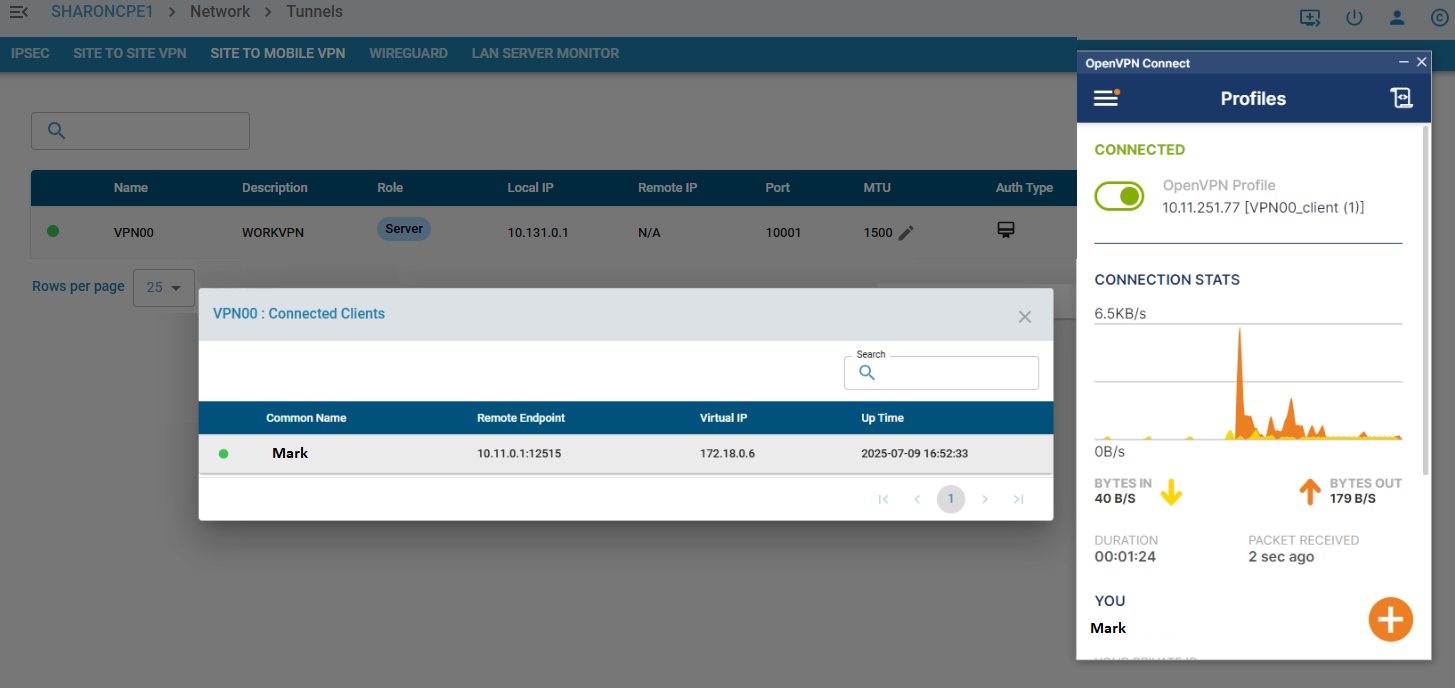

Connected Users

The connected users can be viewed by clicking the Connected clients icon respective to each tunnel

Tunnel Info:

Here,

• VPN tunnel can be enabled/disabled
• VPN tunnel can be deleted
• ADD IP or VLAN to the tunnel interface for Site-To-Site Tunnels

Expected behaviour in the system:

Once VPN tunnel is successfully created, it will create VPN tap or tun interface, example VPN00.

• The VPN tap interface can be used for Bond, Bridge or can assign IP. VLAN can be created on top of VPN Tunnel interface.
• The VPN tun interface the base IP of the DHCP subnet is automatically assigned and it will act as the DHCP server for all Mobile clients

VPN tunnel interface status

VPN interface has the follownig states:

• WAIT -- Waiting for initial response from server/client.
• AUTH -- Authenticating with server.
• CONNECTED -- Initialization Sequence Completed.
• RECONNECTING -- A restart has occurred.
• CONNECTING -- OpenVPN's initial state.
• EXITING -- A graceful exit is in progress.
• DOWN -- SSL VPN is disabled

SSLVPN Color Status in UI:

• GREEN: WAIT, AUTH, CONNECTED, RECONNECTING
• RED: CONNECTING, EXITING
• GRAY: DOWN

CrossLink Failover for SSL VPN tunnels

When SSLVPN Site-To-Site tunnels in Client Mode are assigned affinity to a NetBalancer gateway, cross link failover functionality is enabled by default. When the interface that the SSL VPN tunnel is running on fails or the Net Balancer gateway fails, the SSL VPN tunnel is restarted on another active gateway tunnel belonging to the same Net Balancer branch.

Tunnel Usage

In SDWAN, tunnels are used in Load Balancer. It can work without Load Balancer too. Load Balancer groups multiple VPNs that connects to the same branch. On top of the tunnel functionality its adds Load Balancing and Link fault tolerance to the Branch to Branch connections.

Known Limitation

• Currently only 99 SSL VPN tunnel can be created per ZWAN controller.
